• D Value : 17.2Kn
• S Value : 350Kg

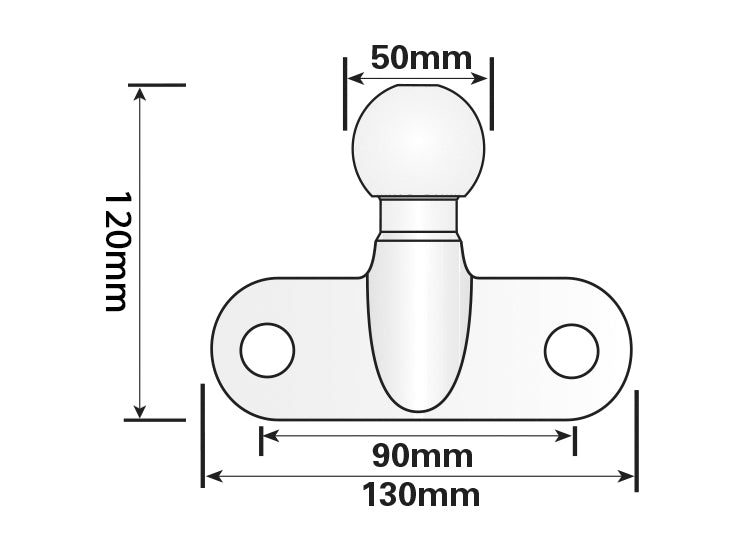

• Standard 90mm fixing centres
• 2 x M16 mounting bolt fixing holes
• E approved to Reg 55
• Approval No: E11 55R-0110512

UN/ECE Regulation 55 has been introduced to replace EC94/20 towbar regulation. Regulation 55 is fundamentally similar to EC94/20, but with additional test and administration requirements. All of our towballs and ball & pin hitches are approved to Reg 55.

Fitting Instructions

• Use only BS3692 grade 8.8 H.T. bolts with lock washers
• Torque to 240 Nm
• Check torque again after first use and regularly thereafter
